This Bass Drum upgrade kit replaces the lousy spurs on your bass drum, using our Ultralight Aluminum gullwing style spurs.

• Better Stability! Much more sturdy than the spurs on many vintage drums

• Better For Transporting! Folds around bass drum to fit in cases

• Memory Locks for repeatable setups!

• These can install in place of single or double lugs with hole spacings between 1-3”, OR in place of 2 horizontal holes from previously installed brackets. *please note- Ludwig Club Date drums with Large Bowtie lugs have a hole spacing of almost 4”, and are not compatible- double check before ordering!

• US Patents 10,366,681 B2, 9,792,888 B1

The kit includes:

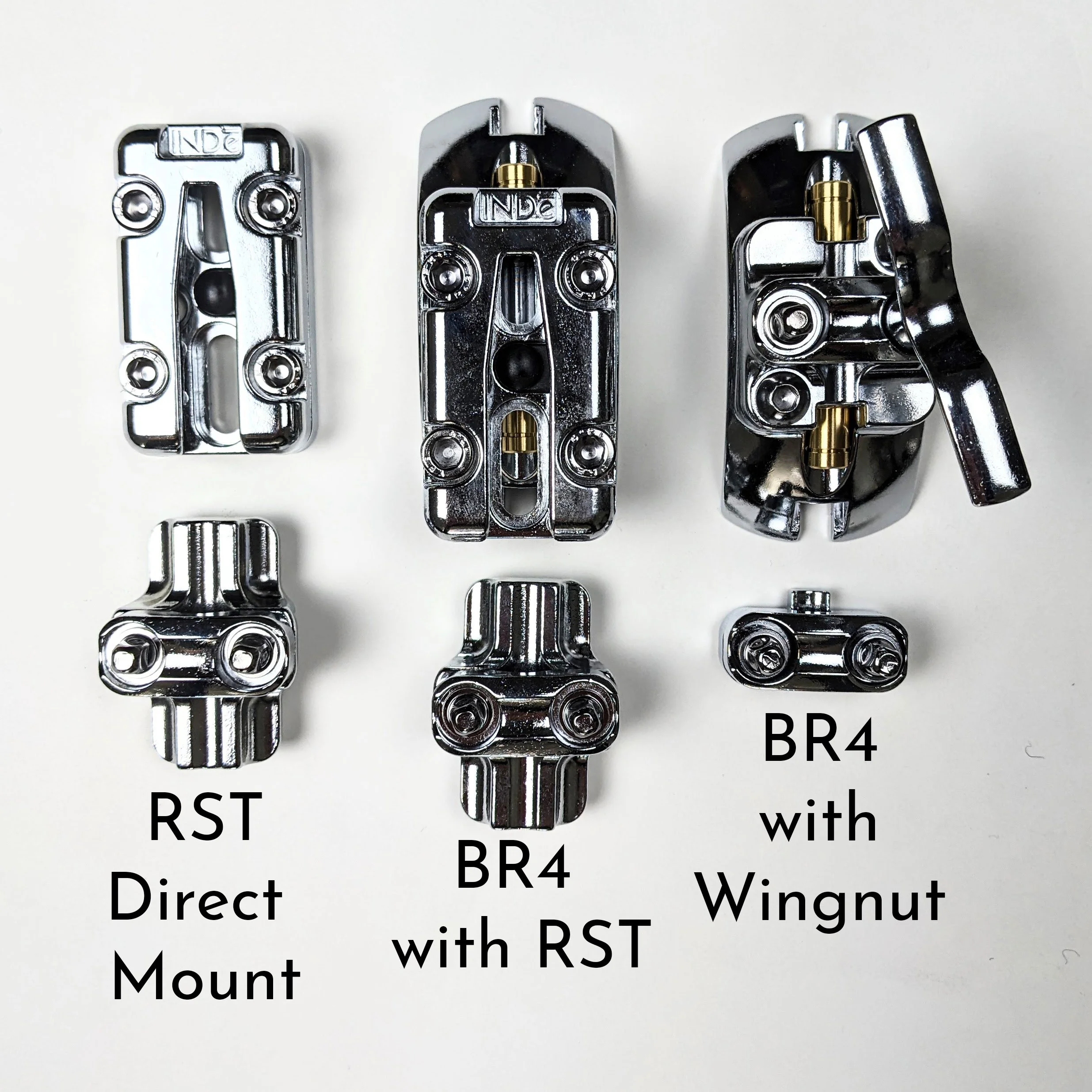

• 2 brackets (if selected), BR4 w/ Wingnut, BR4 with RST, or RST Direct mount

• Pair of 10.5mm spurs, Your choice of 4 Sizes of Ultralight Aluminum. See below for length recommendation

• 2 Memory Locks (for wingnut clamp only)

SIZING: For Lug-replacement installations, choose the size and lug count of your drum from the list below. If you are using a riser, add the height of the riser to the length of the spurs. *Note: Only standard 12-24 thread tension rods will work! DW/PDP and Pearl use non-standard tension rods. DW/PDP use non-standard threading. Pearl uses non-standard diameter.

• 16” 8-lug: 8”

• 18” 8 lug: 8”

• 20” 8 lug: 8”

• 20” 10 Lug: 6”

• 22” 8 lug: 9”

• 22” 10 lug: 6”

• 24” 10 lug 8”

• 26” 10 lug 8”

• For non-lug replacement options, you must MEASURE Your drum: Set up in playing position, measure from the bracket location to the floor, and and 1 1/2 to 2” to find the correct length.

To replace Ludwig gullwing or curved spurs, choose 10” Ultralight spurs.

6” spurs work great for floor-tom to bass drum conversions using the existing brackets!

NOW AVAILABLE - KBRAKES

An additional offering in our spur package setups are KBrakes, the latest and greatest in drum kit slide prevention. KBrakes Universal system boasts 512 stopping points that dig into the carpet, locking your drums in place. No longer will drummers have to worry about bass drums sliding away during rehearsals or performances! Perfect for 9 - 12mm spurs (threaded & non-threaded), KBrakes are lightweight yet extremely durable.

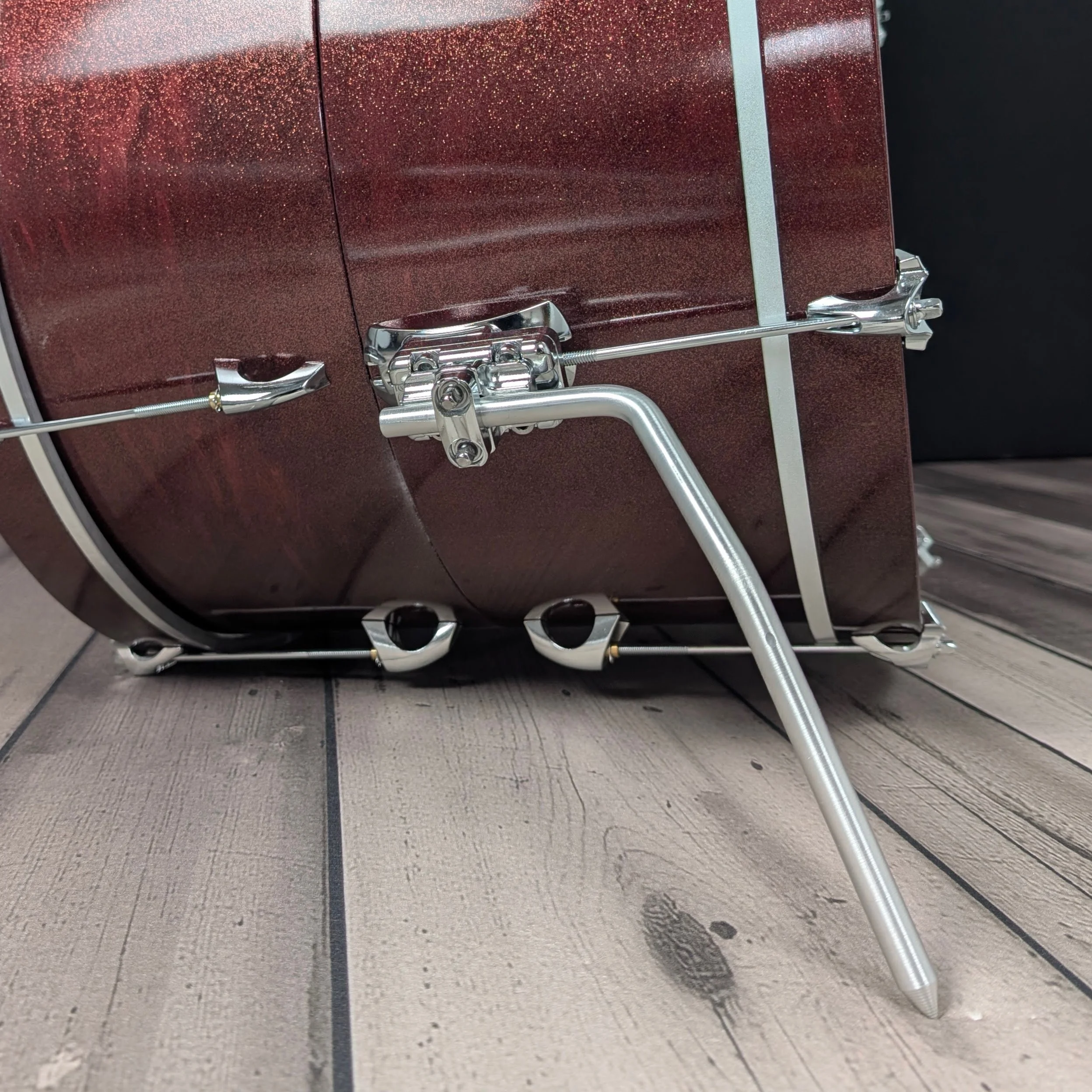

*Pictured above on Ultralight spurs with BR3 brackets attached to bass drum.
